Subli8017/8019
sublistar
Product Description
| Description | 31.4″ diameter drum provides for high speed transferring，Oil filled drum makes colors consistent side to side and job to job. A new self contained, oil heated drum system assures uniform heat across the width of the cylinder and the lowest possible power consumption | ||
| Features | △ Diameter cylinder 80cm (31.4″) △ Production 17m/min (52 ft/min)max △ 36 heating elements △83″,98″,138″working width allows heat transfer printing all fabric widths or two side by side. GRAND FORMAT 12 ft. WIDE! △Blanket coverage at least 80% △Electro pneumatic belt steering system △Safety bar with reverse control △Cool down timer △Exit cooling conveyor | ||
| Specifications | SUBLI-8021 | SUBLI-8025 | SUBLI-8035 |
| Drum Diameter | 80cm or 31.4”, Double Layer | ||
| Working Width | 2100mm(83″) | 2500mm(98″) | 3500mm(138″) |
| Voltage | 3 phase, 220V / 380V / 480V | 3 phase, 380V | |
| Power | 75.6KW | 90KW | 126KW |
| Transfer Speed | 3.3m/min(10ft)-17m/min(52ft) | ||
| Number of Heating Elements | 36 | ||
| Feeding Rollers | 3 | ||
| Collecting Rollers | 3 | ||
| Process Path | Feeding in Through Bottom of Drum | ||
| Roll-to-roll | Yes | ||
| Piece-by-piece | Yes | ||
| Packing Dimensions | 3600*2000*1600mm | 3750*3700*1850mm | 5000*3700*1800mm |
| Installation size | 5000*2200*1800mm | 5000*3700*1800mm | 5000*3700*1800mm |
| NOTE: | Working width available from 1200mm to 2600mm. | ||
This model can be used for transferring on continuous or roll materials.There is external tank connected to the oil drum to fill the oil drum full.

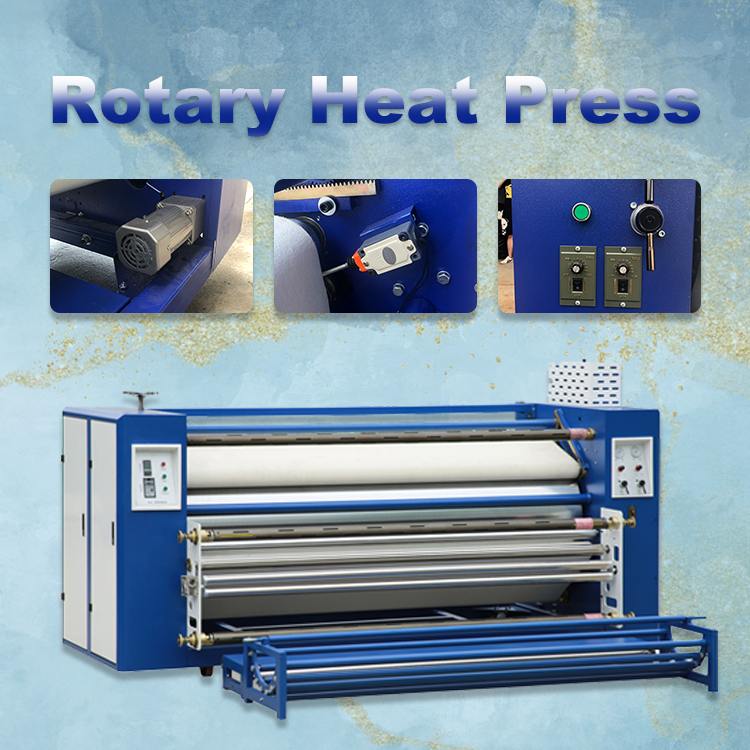

Full oil drum improves the stability of oil drum temperature. It makes sure that density of color is the same throughout the large format fabric. New Rotary Heat Press 100% full oil drum is excellent for roll-to-roll transfer. Moreover, heating power (working) is 20% lower now. It helps sign producers reduce the electrical cost.
Blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life
This heat transfer machine is small and affordable. And blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.
1.Roll to roll,piece to piece printing.
2.Sudden stop alarm system in optional.
3. Durable electric power. Mark each wire to get exact maintaince.
4. Intelligent Touch Screen Control (Auto Switch On; User Friendly Speed Settings; Tempeture control, Smart Blanket Alignment), convenient & efficient& accuracy.
5. Teflon coating on the surface of the hot roll, high-temperature resistance, anti-static, long life.
6. Advanced heat reverse function, uniform temperature around and around.
7. Equipt the swift to correct the blanket off-line.
8. Roller press blanket, assure the tension and tightness between the blanket and roller, get perfect print effect.
9. Equipt tension adjustment, assure the paper and textile into the printing smoothly, reduce the wrinkle.
- Lycra materials-cycling
- Polyamide-Swim&Surfwear
- 100% polyester(stretch)-cycling, running, ice hockey wear
- Sports and functional textiles
Curtain, Blind, Cushion, Table Cover, Towel Cleaner, etc.
Flags, Banners, Felts, Gaming tables, Home Textiles
Ceramics, Metal plates, Skis, Snowboards, Mug, Cup
