320mm Entry Level Roller Heat Transfer Machine
You are here: Home » Products » Rotary Heat Press » 320mm Entry Level Roller Heat Transfer Machine

320mm Entry Level Roller Heat Transfer Machine

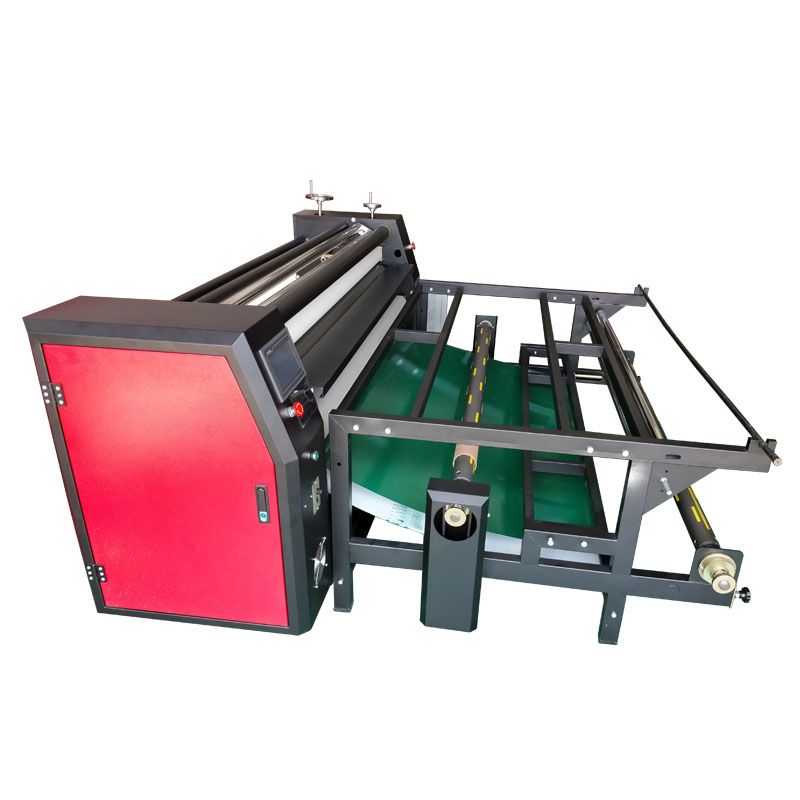

SUBLI-320Series Entry Level calender heat press is an entry-level, oil-heated, multi-functional mini-rotary heat transfer press. This heat transfer machine is small and affordable, ideal for Garments, Apparel, Soft Signage, Mouse Pads, Carpet, Flag, Tent, Blanket, Curtain, Polyester Fabric in Rolls or pieces.
  • SUBLI3217/3219

  • sublistar

Availability:
sharethis sharing button

Product Description

Technical Specifications


Item name Rotary Heat Press Printing Machine
Model No. SUBLI-320Series
Printing width 1700mm 1900M
Roll Diameter 320mm 320mm
Transfer Mode Roll to roll / Cut – Piece
Transfer Speed Adjustable , 120-130m/hr(472”/hr-510”/hr)
Power 40.8KW 48KW
Quantity of Electric Element 15pcs(1.7KW) 15pcs(1.7KW)
Voltage 220 volts 3-phase or 380 volts 3-phase.
Packing size in mm 3500*1400*1650mm 3500*1400*1650
Gross Weight 2000KG 2200KG
Application Transfer onto continuous or cut – piece fabric, sportswear, flags, banner, t shirts, curtain, carpet,textile products
Other Available sizes/drum 1200mm 2000mm,up to 3.2 meters (custom sizes by special order!)1



1.29-ZXR


Advantage of Sublistar Rotary Heat Press

Roll-to-roll or Piece-by-piece processing

Roll-to-roll or piece-by-piece processing transfer available. Ideal for printing rolling cloth, fabric tape or umbrella cloth, and so on.

Filing Oil Drum to 100% (Saving 30% Power)

Uniform heating element temperature, heat transfer pattern of colorless difference.


75% Nome Drum Blanket Coverage

Blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.

Universal Bearing

We use the lasted universal bearing, which can effectively reduce the wear of bearing and reduce the loss of parts.


Machine Details

1. Check every part of the machine regularly to make sure it can work normally.

2.Be careful when pressing the emergency stop button. Often use this button is harmful to the chain, towline, and belt.

3. Each time before you start operating, remember the machine must be refueling according to the rules.

4. The roller heat press machine on the gas source processor, should close the gas 2 times a day; aerosol oil, adjusted to 4-5 drops per minute, and in the refueling to gas.

5. Joint head: drops of butter (a week/time, 10-20g), oil (1-2 drops, 3 days/times).

6. Sometimes the optical axis will drop oil twice a week. The best method to avoid this situation is using good quality media.


2.23-ZXR


Applications

Apparel

- Lycra materials-cycling
- Polyamide-Swim&Surfwear
- 100% polyester(stretch)-cycling, running, ice hockey wear
- Sports and functional textiles

Home Internal

Curtain, Blind, Cushion, Table Cover, Towel Cleaner, etc.

Advertisement

Flags, Banners, Felts, Gaming tables, Home Textiles

Hard Substrates

Ceramics, Metal plates, Skis, Snowboards, Mug, Cup
