SUBLI2017/2019
Sublistar
Product Description
| Specifications | SUBLI-2012 | SUBLI-2017 |

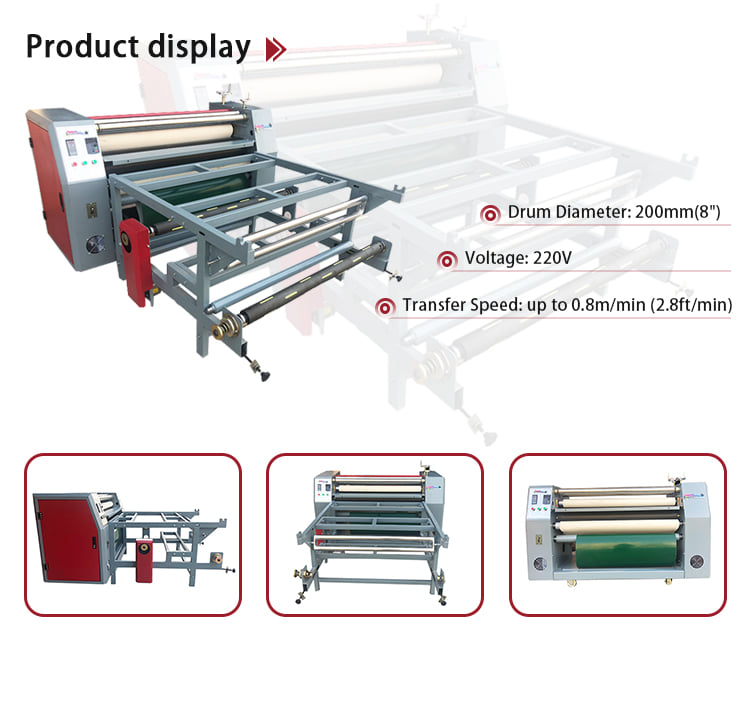

| Drum Diameter | 200mm(8″) | 200mm(8″) |
| Transfer Width | 1100mm(43″) | 1600mm(63″) |
| Voltage | Single Phase, 220V | 3 Phase, 220V |
| Power | 5kw | 7kw |
| Transfer Speed | up to 0.8m/min (2.8ft/min) | |
| Number of Heating Elements | 9 | |
| Feeding Rollers | 3 | |
| Collecting Rollers | 3 | |
| Process Path | Feeding in Through Top of Drum | |
| Work Table | Yes, no glass | |
| Machine Dimensions | 1850*660*1270mm | 2430*710*1300mm |

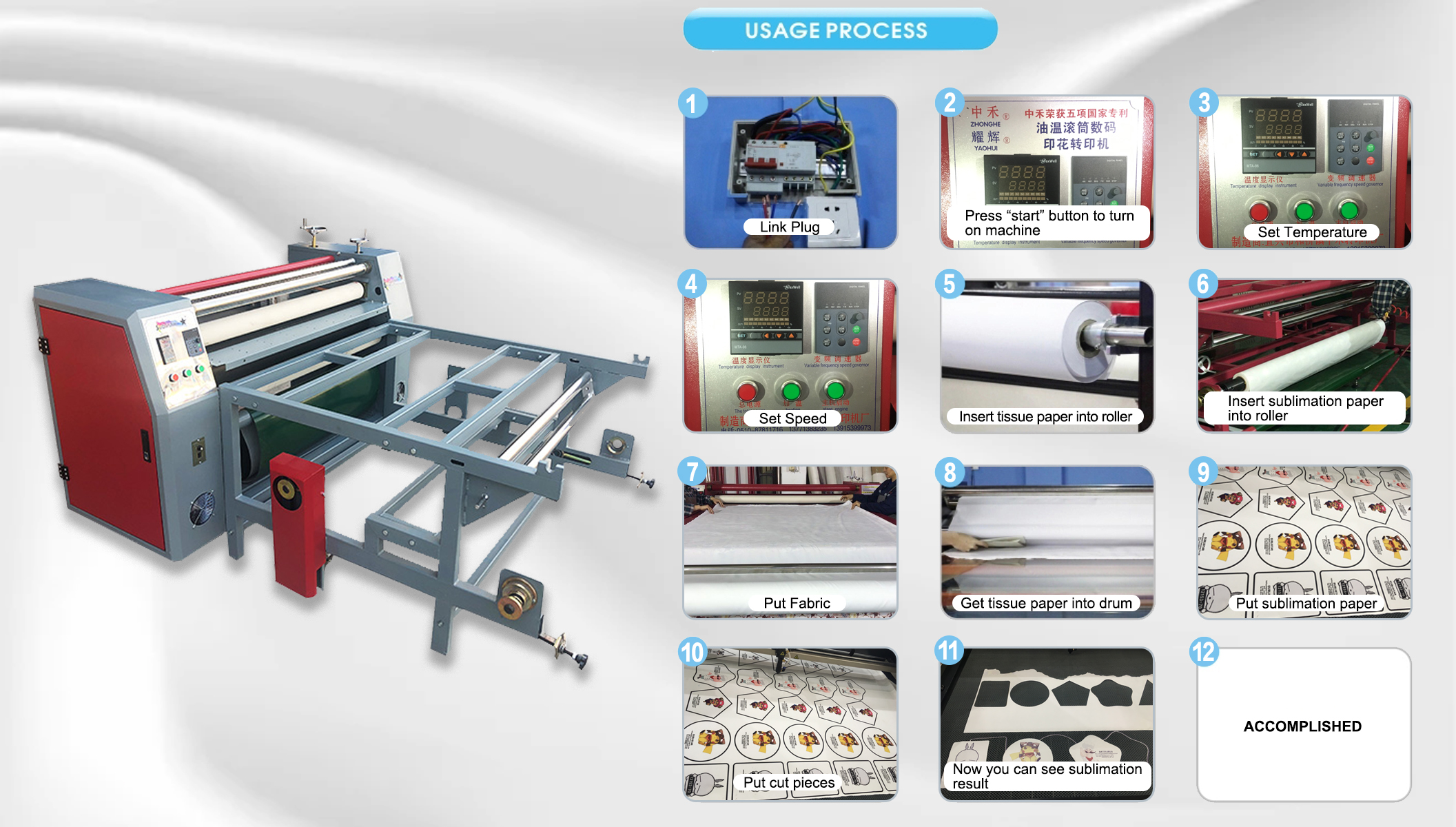

There is no need for manual feeding in of workpieces and paper during operation. When the machine start heating, the drum must be running to prevent blanket burn, and it is better worker be here in process heating.
When the machine is operating, you need to adjust the fabric and sublimation paper, which can help you prevent your fingers from being pressed.
Oil heated, multifunctional mini-rotary heat transfer press. Uniform heating element temperature, heat transfer pattern of colorless difference
This heat transfer machine is small and affordable. And blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.
1. DuPont Blanket: Blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.
2. Single drum: Inside / outside cylinder finishing, cylindrical precision grinding machine, drum heating evenly, no color difference.
3. Integrated slip ring: free maintenance
4. Heating tube: stainless steel heating tube, heat the conductive oil directly, the temperature can rise to 200 ºC within 45 minutes.
5. Universal bearing: we use the lasted universal bearing, which can effectively reduce the wear of bearing and reduce the loss of parts.
6. Small machine, proofing and producing lower cost.
- Lycra materials-cycling
- Polyamide-Swim&Surfwear
- 100% polyester(stretch)-cycling, running, ice hockey wear
- Sports and functional textiles
Curtain, Blind, Cushion, Table Cover, Towel Cleaner, etc.
Flags, Banners, Felts, Gaming tables, Home Textiles
Ceramics, Metal plates, Skis, Snowboards, Mug, Cup
