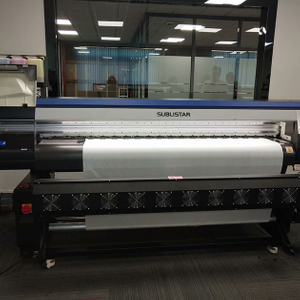

Sublimation Printer TX-18021803

Piezoelectric inkjet printing is a technique used by single-pass sublimation printers called Sublistar. They can guarantee high-speed printing that is timely and precise. They provide outstanding digital printing that is high-quality, quick, and functional.


Availability:



Inquire

Product Description

Product Description

MODEL		SUB-1802 / 1803 SUB1803(NEON)
FEATURES		* Magnetic Encoder strip ensure more stable printing, 70 times than normal encoder strip. * Original Epson I3200 print heads ensure high precise print. * No need to calibrate the physical position of the printer, just align the ink pad * Integrated IR & Heating dryer system * Best optimized print heads arrangement * High-quality belt chain, to make print head print carriage running more smoothly
PRINTHEAD		Epson 5113/4720/5210 4720
NO.OF PRINTHEAD		2 OR 3
INK DROPLET SIZE		VARIABLE DROP 3-21PL
INK TYPE		WATER BASED DYE INK/SUBLIMATION INK
SUPPLY MODE		CONTINUOUS INK SUPPLY SYSTEM
COLORS		CYAN,MAGENTA,YELLOW AND BLACK 4/6COLORS OPTIONAL
AUTOMATIC NOZZLE CLEANING SYSTEM		ANTI-BLOCKAGE & MOISTURIZING FUNTION
PRODUCTIVITY	360*360dpi	1PASS:150m2/h
	360*1200dpi	2PASS:84m2/h 1PASS:80m2/h
	360*1800dpi	3PASS:60m2/h 1PASS:80m2/h
	360*2400dpi	4PASS:42m2/h 2PASS:40m2/h
	360*3600dpi	6PASS:30m2/h 2PASS:46m2/h
RIP software		蒙泰/WASATCH/NEOSTAMPER
MAXIMUM PRINT WIDTH		1800MM
MEDIA		HEAT TRANSFER PAPER
MEDIAADSORPTON SYSTEM		MULTI-AIR SUCTION SYSTEM WITH ADJUSTABLE STENGHT
HEATING SYSTEM		ADJUSTABLE EMBEDED HEATING SYSTEM
DRYING SYSTEM		EQUIPPED WITH COOLING FAN AND INFRARED HEATER WITH ADJUSTABLE TEMP
OPERATION SYSTEM		WIN7 64 BYTE
RIP SOFTWARE		MAINTOP/WASATCH/NEOSTAMPA
DATA TRANSMISSION INTERACE		HI-USB2.0/3.0 MBPS
POWER		AC 220V 50HZ/60HZ 1500W
ENVIRONMENT	TEMPERATURE	15-25℃
ENVIRONMENT	HUMIDITY	45-65%
DIMENSION(MACHINE)		28209001550mm
DIMENSION(PACKING)		THE MAIN PART：2950760740mm THE BASE PART：2400500520mm
MACHIINE WEIGHT		250kg （MAIN 175kg/BASE 75kg）
PACKING WEIGHT		325kg （MAIN 215kg/BASE 110kg）
ACCESSORIES		Standard package: Including one set computer which installed Rip Software, Ink cartridges, USB Cables, Manual, Toolkit, Wearable spare parts, 1 set sublimation ink and 1 roll sublimation paper.

Introduction	SUBLISTAR® high-performance printer delivers a cost-effective dye-sublimation solution that offers you unprecedented levels of quality and productivity. 2/ 3/ 4pcs Epson i3200 print heads optional Magnetic Encoder strip instead of normal encoder strip. Integrated IR & Heating dryer system Perfectly suitable for printing onto thin transfer media, you can easily produce fashion, apparel, sportswear, banner, flags, home decro and more.
Features	* Maximum productivity of 150Sqm/Hr * Dye-sublimation inks available in 4, 6 and 8 color configurations, including fluorescent pink and yellow * Auto tension bars accurately feed fabrics * Integrated IR & cooling fan system * Mini-jumbo roll loading media up to 500m * Available with Maintop/ Wasatch/ Neostamper RIP software included
Details and characteristics	* Double THK high-precision mute rail Ensure straight and high precision printing, and less noise 5L Bulk Ink Supply System Ensure high efficient and continuous printing, easier to refill ink Magnetic Encoder strip Decrease effects on printing caused by the working environment (like dust, ink pollution, etc), and 70 times than normal encoder strip. * Genuine Epson i3200 print heads 2/3/4 Staggered Heads for high-precision and high-speed printing
	One-year warranty and unmatched reliability. Sublistar® has earned a worldwide reputation for building reliable machines and backing them up with unmatched customer service and technical support. This model is supplied with One-Year Trouble-Free Warranty.
Application	Fashion Clothing	The huge popularity of sublimation clothes have led sublimation apparel manufacturers to push and come up with ever new designs to cater to the increasing need of fashion clothes market.
	Sportswear	Nice Sublimated Clothing For Lifestyle & Sports, Sublimation prints set trends in the field of polyester sportswear, swimwear, yoga wear, cycling wear etc. Good quality control printing has made the sublimation printing method the first alternative for all.
	Home decorations	Customization and personal taste have turned the indoor decor market to an exciting new application for digital textile print producers. Curtains, wallpapers, bed sheet, upholstery fabrics and lampshades are all examples of printed interior decoration.
	Banner/ Flags	Most dye sublimation banners are used either in conventions, tradeshows, retail, or temporary outdoor displays or fairs. They are typically printed on a poly knit material, which is a heavy duty polyester fabric that displays color brilliantly.
