S2508 PRO
SUBLISTAR
Product Description
| Model | S2508 PRO | |
| Print Head | 4/8 S3200 Print Heads | |
| Printing Technology | Piezoelectric Inkjet | |
| Width | < 2100 mm | |
| Acceptable Media | Minimum Media Weight 30g | |
| Maximum Media Load | < 10000m | |
| Printing Width | < 2050 mm | |
| Type | Dye Sublimation Ink | |
| Ink Cartridges | Capacity | 5L Ink tank |
| Color | 4 colors (C/M/Y/K) / 8 colors (C/MZY/K/Lc/Lm/R/Or) | |
| Printing Resolution | Maximum 3200 dpi | |
| Printing Speed | 1pass(300x600dpi): 620 sqm/h (4 colors) 1pass(300x600dpi): 300 sqm/h (8 colors) | |
| 2pass(300x1200dpi): 310 sqm/h (4 colors) 2pass(300x1200dpi): 150 sqm/h (8 colors) 3pass(300x1800dpi): 200 sqm/h (4 colors) 3pass(360x1800dpi): 90 sqm/h (8 colors) | ||
| Media Heating System | Integrated post heater & Infrared Dryer & Fan system | |
| Interface | USB 3.0 | |
| Power Supply | AC 220V ± 10%, 50/60 HZ | |
| Dimensions(with stand) | Entirety machine size : 4050mm x 2350mm x 2150mm Printer size : 4050mm x 1100mm x 2150mm Media loading systems size : 2550mm x 1250mm x 1250mm | |
| Weight(with stand) | 2T | |
| Environment | Power on | Temperature: 59 T to 90 T [15 C to 32 C] / Humidity: 35 to 80% (no condensation) |
| Power off | Temperature: 41 T to 104 ? [5 C to 40 C] / Humidity: 20 to 80% (no condensation) | |
| Accessories | USB cable, manual, drain bottle, ink cartridges, RIP software, etc. | |
Latest technology of DTF PRO, Want some quality clothing shirt? Try our DTF Print, same as silkscreen.

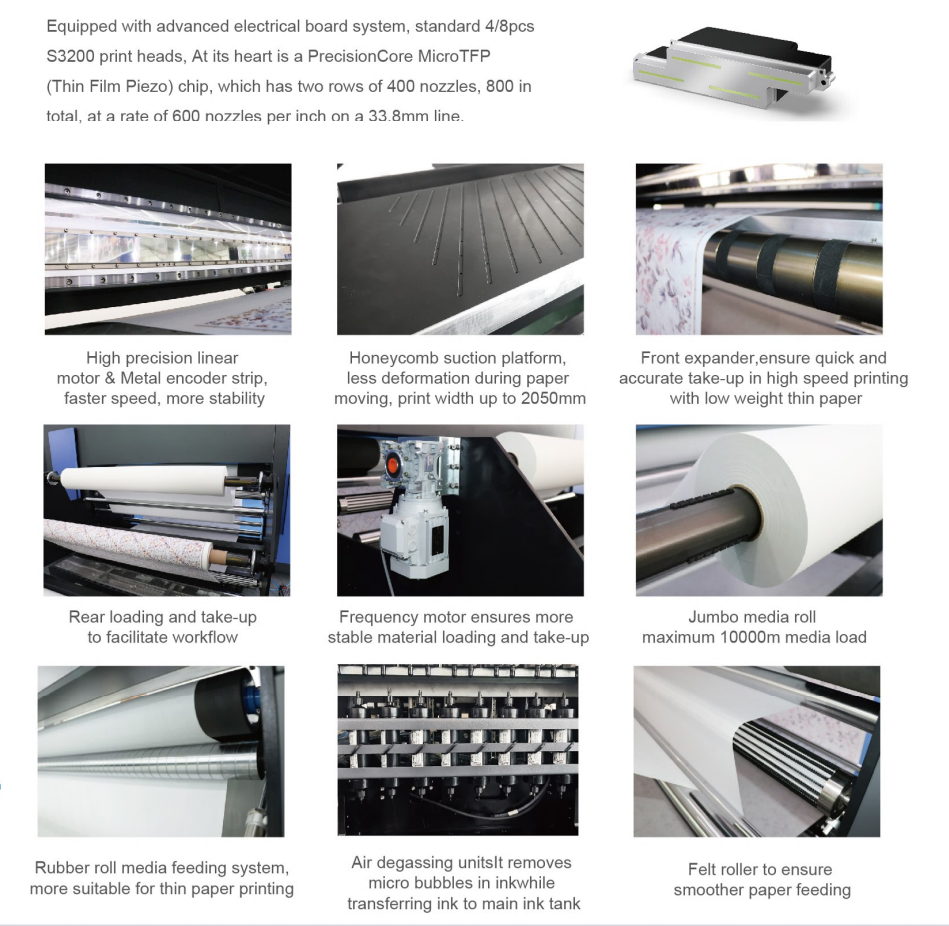

Original S3200 print head, high-speed production, more durable and stable;
Industrial printer design extends print head lifespan;
Professional color management software, more accurate output color;
Bold structure brings more stable long-term printing;
Fully sealed drying system and mute fans reduce noise a lot;
State-of-art industrial design concept, strong body.
- Lycra materials-cycling
- Polyamide-Swim&Surfwear
- 100% polyester(stretch)-cycling, running, ice hockey wear
- Sports and functional textiles
Curtain, Blind, Cushion, Table Cover, Towel Cleaner, etc.
Flags, Banners, Felts, Gaming tables, Home Textiles
Ceramics, Metal plates, Skis, Snowboards, Mug, Cup

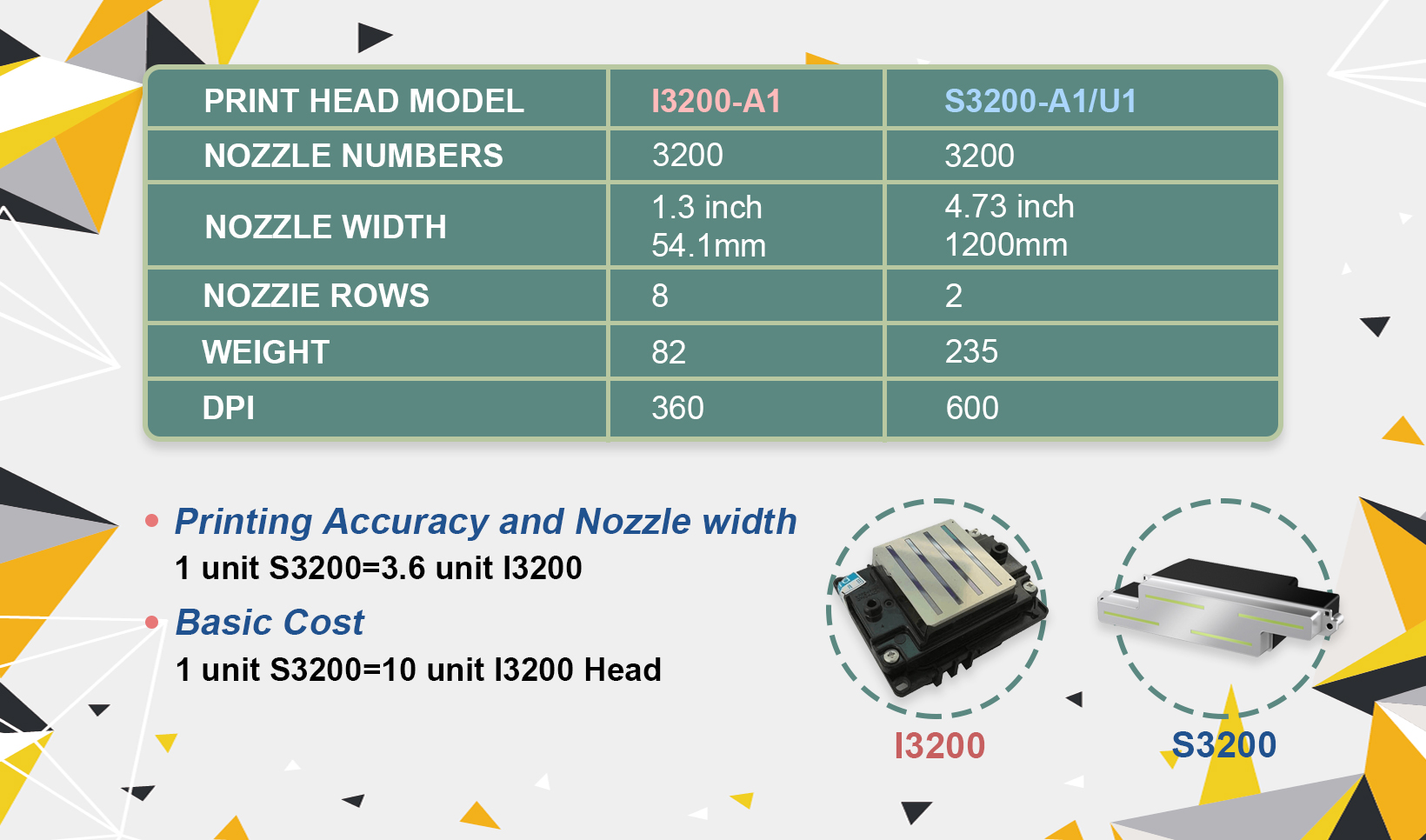

The differences between I3200 & S3200 print heads?
