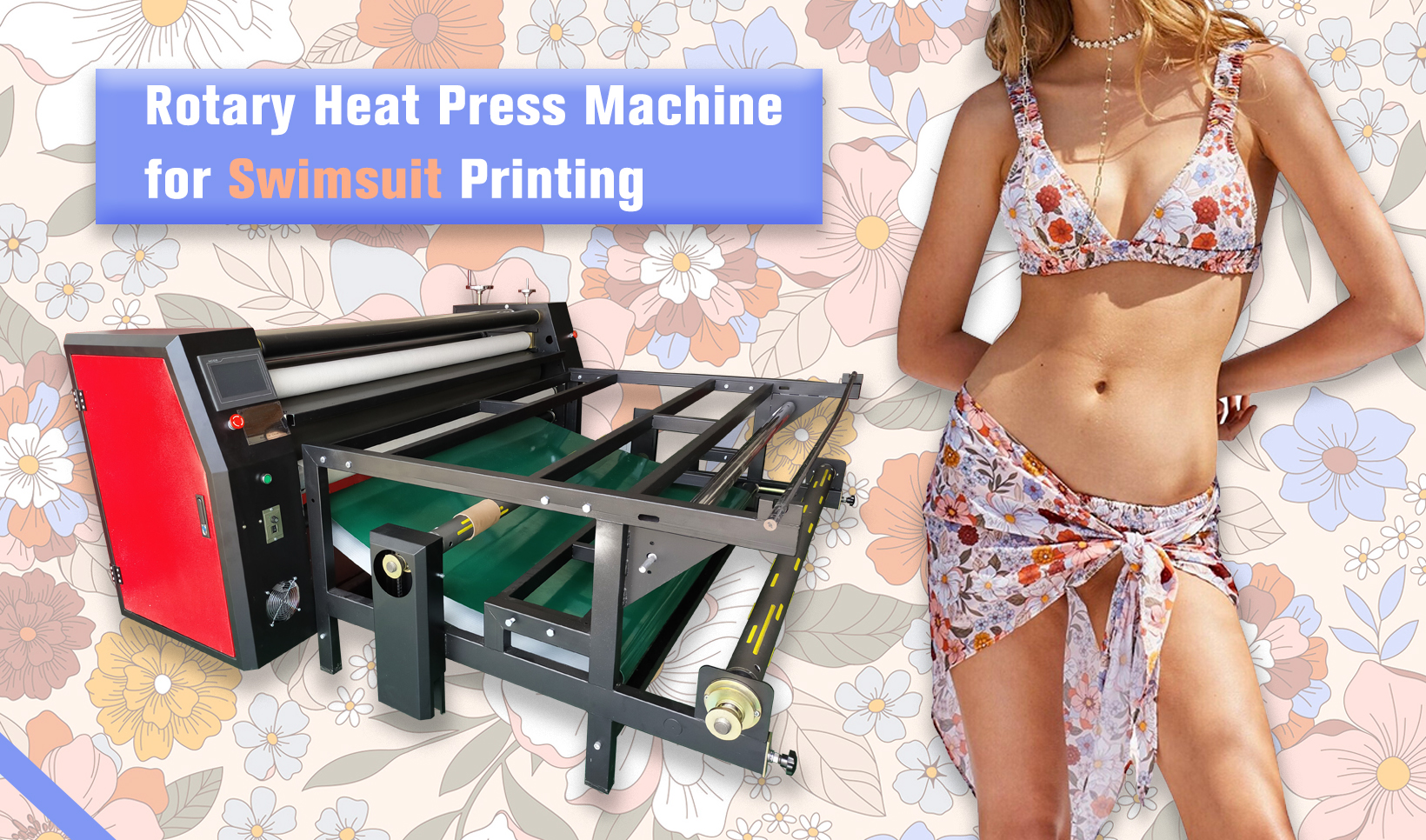

| Item name | Rotary Heat Press Printing Machine | |
| Model No. | SUBLI-320Series | |
| Printing width | 1700mm | 1900M |
| Roll Diameter | 320mm | 320mm |
| Transfer Mode | Roll to roll / Cut – Piece | |
| Transfer Speed | Adjustable , 120-130m/hr(472”/hr-510”/hr) | |
| Power | 40.8KW | 48KW |
| Quantity of Electric Element | 15pcs(1.7KW) | 15pcs(1.7KW) |
| Voltage | 220 volts 3-phase or 380 volts 3-phase. | |
| Packing size in mm | 3500*1400*1650mm | 3500*1400*1650 |
| Gross Weight | 2000KG | 2200KG |
| Application | Transfer onto continuous or cut – piece fabric, sportswear, flags, banner, t shirts, curtain, carpet,textile products | |
| Other Available sizes/drum | 1200mm 2000mm,up to 3.2 meters (custom sizes by special order!)1 | |
Roll-to-roll or piece-by-piece processing transfer available. Ideal for printing rolling cloth, fabric tape or umbrella cloth, and so on.
Uniform heating element temperature, heat transfer pattern of colorless difference.
Blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.
We use the lasted universal bearing, which can effectively reduce the wear of bearing and reduce the loss of parts.
1. Check every part of the machine regularly to make sure it can work normally.
2.Be careful when pressing the emergency stop button. Often use this button is harmful to the chain, towline, and belt.
3. Each time before you start operating, remember the machine must be refueling according to the rules.
4. The roller heat press machine on the gas source processor, should close the gas 2 times a day; aerosol oil, adjusted to 4-5 drops per minute, and in the refueling to gas.
5. Joint head: drops of butter (a week/time, 10-20g), oil (1-2 drops, 3 days/times).
6. Sometimes the optical axis will drop oil twice a week. The best method to avoid this situation is using good quality media.
- Lycra materials-cycling
- Polyamide-Swim&Surfwear
- 100% polyester(stretch)-cycling, running, ice hockey wear
- Sports and functional textiles
Curtain, Blind, Cushion, Table Cover, Towel Cleaner, etc.
Flags, Banners, Felts, Gaming tables, Home Textiles
Ceramics, Metal plates, Skis, Snowboards, Mug, Cup
