DTF-A3 Mini Pro Max
SUBLISTAR
Product Description
Specifications:
Double head XP600 digital white ink heat transfer machine
Printer | Shake powder machine | |
Type | DTF-6002 Pro Max | |
Nozzle Type | /2 original Epson I3200-A1 | |
Printing speed | High speed mode 20㎡/hour HD mode 15㎡/hour | |
Color mode | CMYK+W | |
Print format | 600mm | |
Media transfer | Damping paper/tension paperr | |
Heating equipment | Front, middle and back three-stage heating | |
Ink road system | Automatic ink supply, white ink circulating and stirring | |
Power supply | 110V/220V 50-60Hz | |
power | 1.5kw | ≈5kw |
Working environment | Temperature 20-28℃ Humidity 50-70ph | |
Weight | 165KG | 160KG |
Cover an area | 1.8*3.5M | |
Staggered Inkjet Printing for Uninterrupted film feeding
1. Different from the traditional printing method, the new DTF Pro Max printer adopts staggered inkjet printing, uninterrupted film feeding, it saves a lot of paper feeding time, the printing efficiency and speed are increased by two times, and the maximum printing speed up to 20 ㎡/hour.
2. Continuous paper feeding and printing point coverage are denser, 4PASS accuracy surpasses 6PASS ordinary powder shaker on the market!
3. Uninterrupted paper feed printing and constant tension paper feeding system perfectly solve the problems of color difference, ink broken, and different shades caused by inaccurate paper feeding, ensuring high productivity and high quality!
Constant tension Control system
New constant tension paper feeding system to ensure that the white color ink printing is in place and accurately covering on color ink printed image.
The SUBLISTAR DTF printer adopts constant tension paper feeding and damping paper feeding to overcome the influence of tension, support large rolls, and reject paper arching. Precise paper feeding and the PET film does not deviate when shaking powder.
Intelligent PLC control panel, easy to control all functions, monitor the running status of the inductor motor, graphic instructions, simple and clear.
Automatic mode, one button to complete powder loading, powder coating, shaking powder, heating, winding, comfortable and worry-free to complete production.
Special heating mode, perfectly adapted to the needs of high-speed machine drying, baking dry, non-sticky, ensuring productivity.

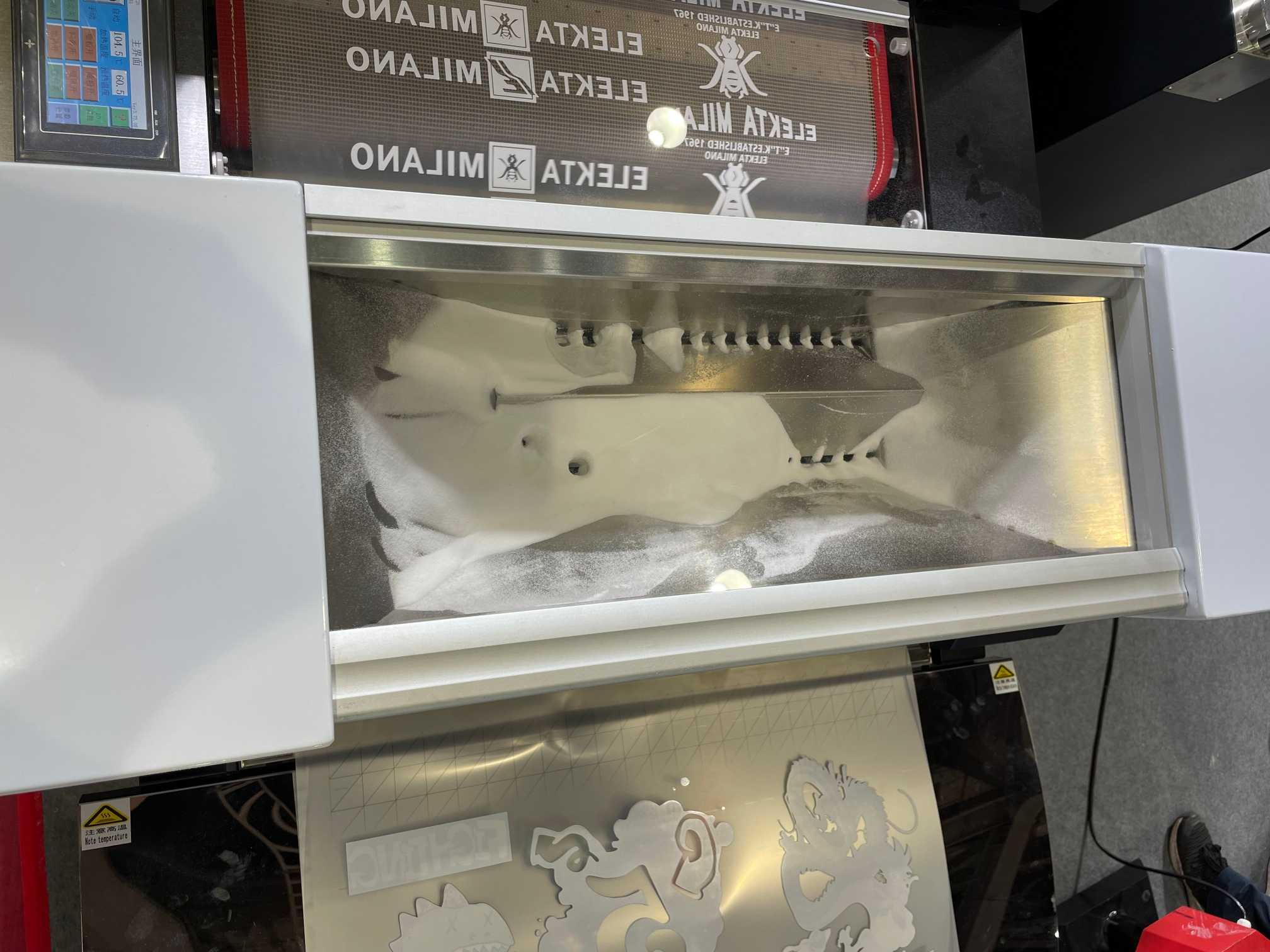

The powder box upgraded: special powder blocking device runs the sensor when the powder flowing, no need to wait for a long time, and the powder is sensed.
SUBLISTAR DTF Pro Max printer’s another change is its suction system improvement.
Upgraded the location of the belt suction system, different from the old version built-in suction system, the new external suction system multi-circular holes design can easily dissipate heat and steam, reduce the burden of the blower and meanwhile extend the life of the motor. New model uses double suction system(front and back suction system) , which make the film tightly adsorbed on the belt platform, not slipping, facilitates the customer to cut samples to test.
After Sublistar’s continuous improvement test, our DTF Pro Max Printer’s new staggered printing and uninterrupted paper feeding technology, our finished products achieve the higher precision, the better color output, and meanwhile, the inkjet point is more uniform, the line is denser.
