Monti Antonio Type 300 Temperature Sublimation Calender 420*1200mm Roller Drum Heat Transfer Machine

Item Code: Features:Features of heat press machine : *Automatically fix the position of the cloth and the paper, suitable for printing rolling cloth, fabric tape or umbrella cloth and so on. *Using new technology, import elements control, high accuracy. Accurate heating, automatic space, safe and durable. *Heating wheel uses sealed conducting oil, it could be guaranteed. The temperature is more even and durable.
  • Description

Monti Antonio Type 300 Temperature Sublimation Calender 420*1200mm Roller Drum Heat Transfer Machine

Features of heat press machine :

*Automatically fix the position of the cloth and the paper, suitable for printing rolling cloth, fabric tape or umbrella cloth and so on.

*Using new technology, import elements control, high accuracy.

Accurate heating, automatic space, safe and durable.

*Heating wheel uses sealed conducting oil, it could be guaranteed. The temperature  is more even and durable.

high quality roll to roll cloth printing heat press machine/ multi function calender

Product Description

Roll to Roll Heat Press Machine Product Description:



Data Sheet
Model DBX-1200B DBX-1700B DBX-1900B DBX-3200B
Heating Media Oil, 100% full
Voltage 3 phase, 240V/380V
Power 15kw 21kw 27kw 40kw
Number of heating elements 21 or 24
Diameter of Drum 420mm (Available in 600mm/800mm)
Transfer Speed Transfer paper :2m/min-offset paper :3m /min
Max Temp. 260 degree
Transfer Width 120cm 160cm 185cm 320cm
Felt Width 130cm 178cm 198cm 335cm
Process Path Deeding in through top drum
Function of Roll-to-roll yes
Function of piece-by-piece yes
Number of feeding rollers 3
Number of collecting Rollers 3
Work table Yes,no glass
Transfer Pressure Bar Without including
Machine Weight 1800kg 2100kg 2400kg 3200kg
Working table size 1200x3500mm 1700x3500mm 2200x3500mm 3200x3000mm



high quality roll to roll cloth printing heat press machine/ multi function calender







high quality roll to roll cloth printing heat press machine/ multi function calender

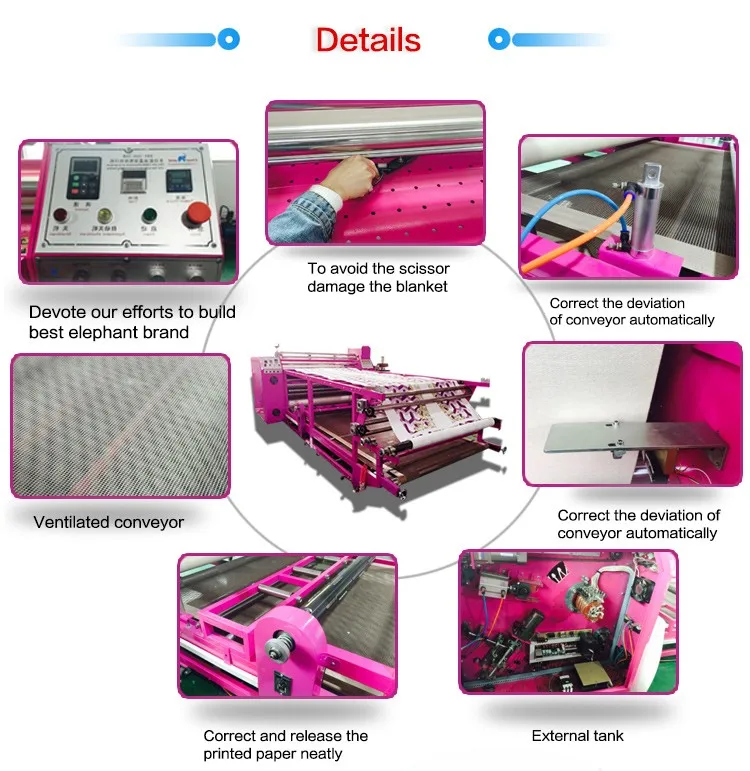

 Feature of  New Model Roll Heat Press Machine:



1. Prevent workers hand into the cylinder (when they are working)

2. Having automatic device for deviation and correction of blanket and
    conveyor belt

3. Having the function to avoid the scissor damaging the blanket

4. The Blanket can be off the heat drum competely for 8cm distance. No
    need to cool down the blanket when you want to stop the machine which
    saves energy, it can also prevent the blanket burn out when power off
    suddenly.

5. Machine has explosion-proof equipment and emergency stop
    button,more safe.

6. Having the outer oil tank which is more easy to fill in the oil and more safe

7. With breathable conveyor belt which make fabric heat dissipating faster
    and prevent color ghosting.

8. With updated air expanding equipment for sublimation paper, finished
    paper and tissue paper.



high quality roll to roll cloth printing heat press machine/ multi function calender





high quality roll to roll cloth printing heat press machine/ multi function calenderhigh quality roll to roll cloth printing heat press machine/ multi function calender
